NAB 2015 Rewind系列教程之：创建幻想的用户界面

2015-05-16 00:42 发布 | 作品版权归原作者所有，仅供参考学习，禁止商业使用！

视频教程 /[影视/栏包]

NAB 2015 Rewind系列教程之：创建幻想的用户界面 NAB 2015 Rewind - Robyn Haddow: Breakdown of FUI Shots for the Flash and Arrow

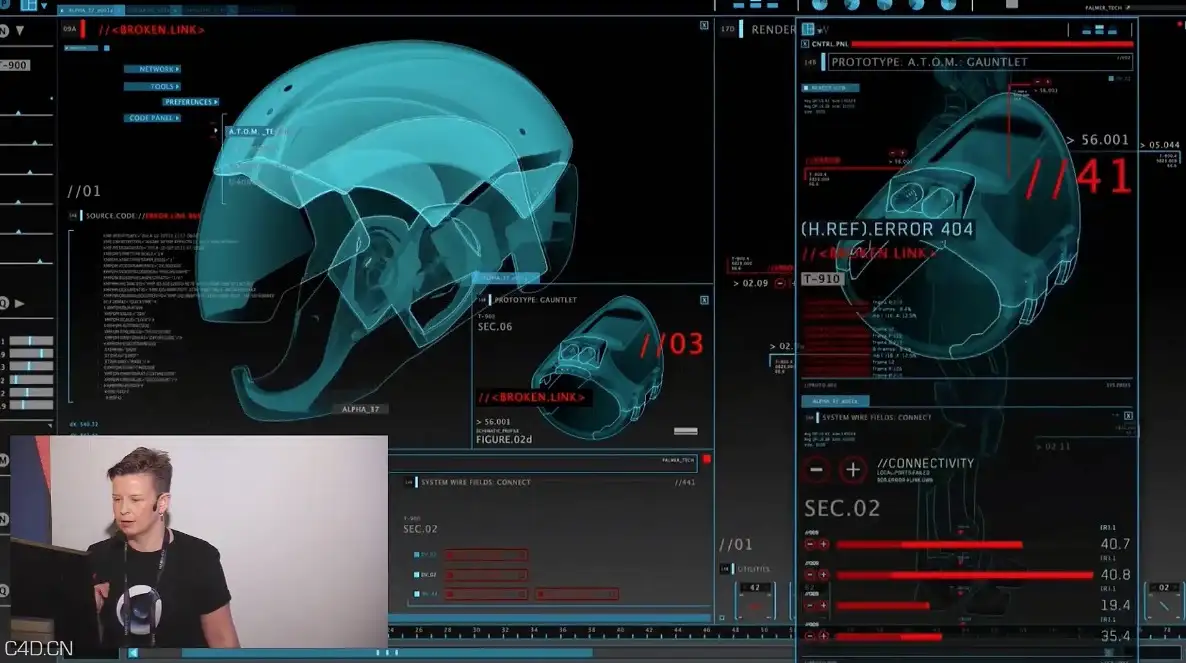

NAB 2015 Rewind系列教程之：创建幻想的用户界面 - C4D之家 - cinema4d_ 2015-05-16 00.40.40.jpg

Robyn Haddow shows how she and Scarab Digital use Cinema 4D's fast workflow to create fantasy user interfaces within the quick turnaround of episodic TV for CW's The Flash and Arrow.
03:24 Scan Wipe Effect (PolyFX, Weight Transform)
09:38 Visualizing Atomic Interactions for The Flash
14:03 Using External Compositing Tag and Cineware to export clone positions to After Effects
17:15 Multiple Atoms with Object Buffers
19:07 Adding Turbulence Particle Force to Dynamics for Repel and Attract Behavior
28:07 Vibrate Tag
30:09 Atom Suit Visualization
33:03 Working with CAD models - Combine Project Command
36:35 Screen UI Graphics
39:07 Floorplan Visualization
41:13 Rendering Wireframes - Cel Renderer
48:06 Rendering Wireframes - Atom Arrray
49:14 Rendering Wireframes - Hair Render
51:18 Weather Wand - Fracture with Effectors
55:23 Building Schematic Reveal

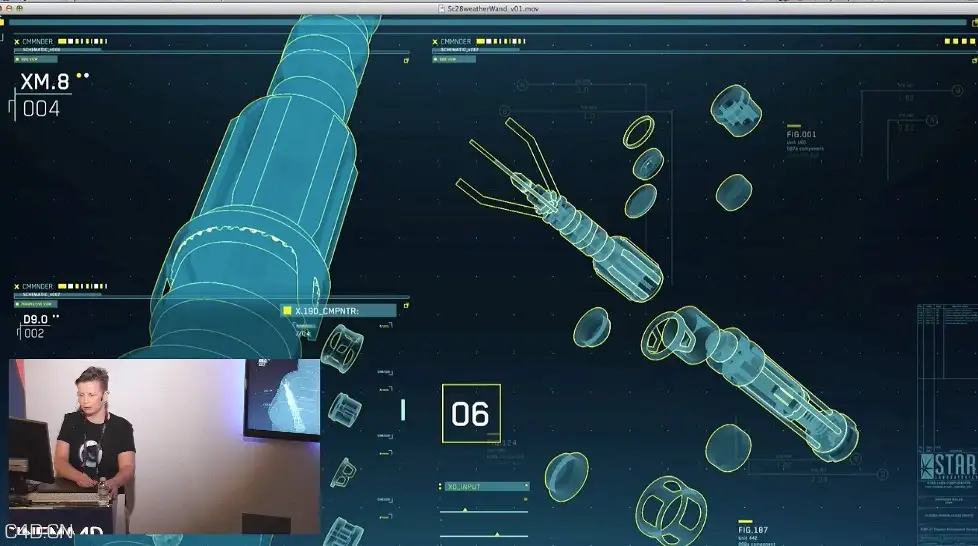

NAB 2015 Rewind系列教程之：创建幻想的用户界面 - C4D之家 - cinema4d_ 2015-05-16 00.41.35.jpg

NAB 2015 Rewind系列教程之：创建幻想的用户界面 - C4D之家 - cinema4d_ 2015-05-16 00.41.35.jpg

Robyn begins with a quick technique for creating a scan wipe effect, using the PolyFX deformer in conjuction with effectors weighted by a Random Effector.

Next, she demonstrates her technique for visualizing atomic interactions between Stein and Robbie in The Flash, using C4D's MoGraph module and Turbulence force object. She shows how the 3D data for each of the atoms can be exported to After Effects so 2D elements can be layered on top. She also shows how to create a similar effect with the Vibrate tag.

Next, Robyn shows several techniques for working with CAD and schematic data and rendering wireframes. She cleans up and simplifies CAD data using Combine Project, and uses a combination of Fresnel and the Cel Render to create wireframe visualizations. Robyn also shows how to generate wireframes using the Hair Render Engine.

Finally Robyn shows the use of the Fracture object and MoGraph effectors to dynamically reveal engineering and architectural schematics.
