C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac

使用Rocket Lasso的新网格到样条线工具Mesh To Spline，将C4D网格中的边、多边形和轮廓解锁为参数样条线。通过域、选择标签、角度阈值和来自任何网格的面向角度，准确地在您想要的位置创建样条线。甚至可以从动画网格中提取样条线，其中通过直接贴在角色表面的样条线释放出更多的力量。zui*喜欢的 3rd 方渲染器没有像 Sketch & Toon 这样的东西？通过勾勒模型轮廓、查找硬边、仅显示正面或背面或简单地绘制每个多边形来创建复杂的风格化外观。通过在样条线上利用 C4D 的原生 Hair Render 或 Sketch & Toon 的速度来加速您的zui*终渲染。或者使用通过您zui*喜欢的 3rd 方渲染器渲染样条线的惊人速度。

主要功能：

使用 Mesh To Spline 生成扫描、创建网格体积、使用 Hair、Sketch & Toon 或 3rd 方渲染进行渲染。使用内置的随机颜色、灰度或由模型的显示颜色驱动的样条线段着色。

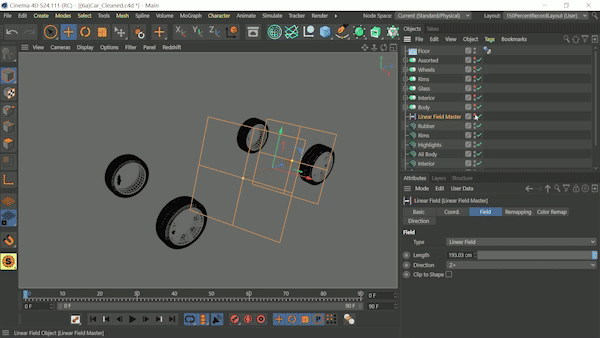

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - RedCarFalloff.gif

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - RedCarFalloff.gif

使用指向选择标签、面向角度甚至字段的实时链接创建独特的样条设置

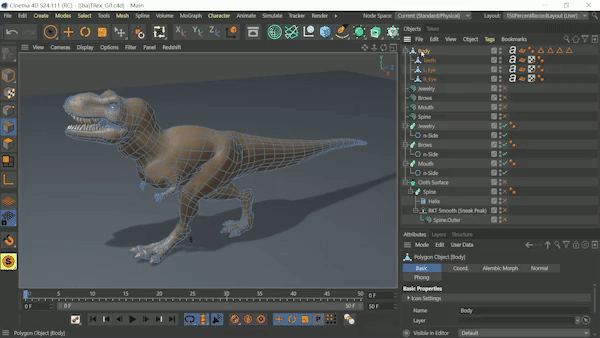

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - TRex_Selections.gif

使用 Mesh To Spline 将动画网格的实时链接直接创建为可以直接粘贴到几何体的样条线

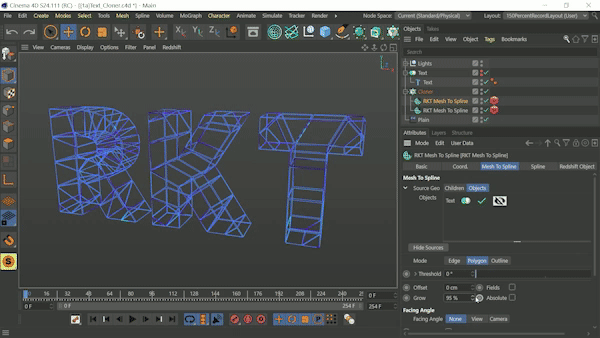

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - RKT_CLonerText-1.gif

Mesh To Spline 与 Cinema 4D 中的 Cloners 和 Mograph 工具配合得很好

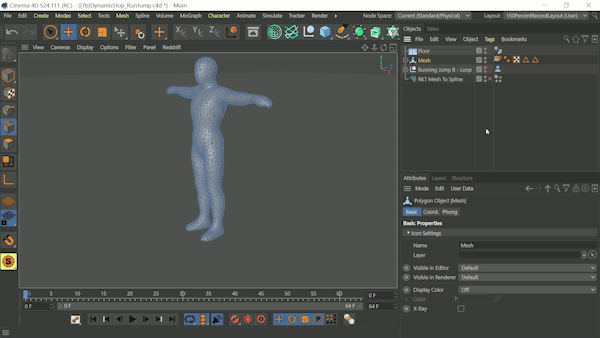

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - Running_Flop.gif

通过将样条线保持在网格上，以有趣的新方式使用 Cinema 4D 的 Softbody Dynamics。

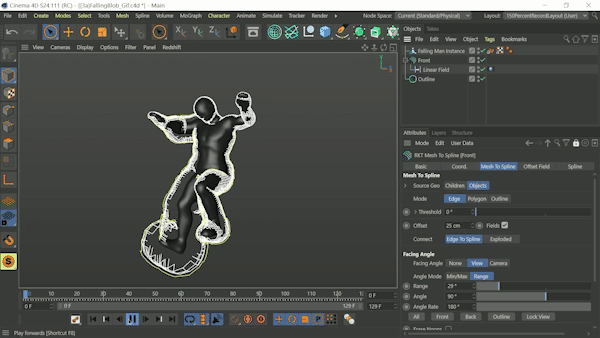

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - FallingManLinearInflate-1.gif

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - FallingManLinearInflate-1.gif

通过面对角度自动创建循环动画。

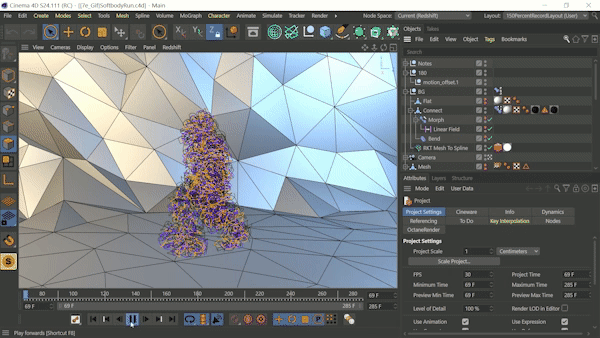

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - Running_Softbody-1.gif

将 Mesh To Spline 与 Dynamics 相结合，以驱动动画和动态动画！

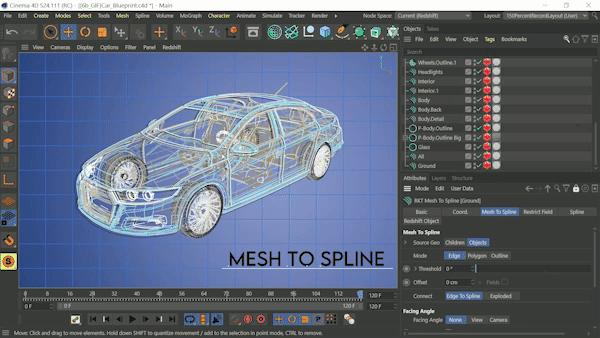

C4D网格边多边形和轮廓转样条线插件RocketLasso Mesh To Spline v1.0 Win/Mac - C4D之家 - CarBluePrintRotate600.gif

zui*喜欢的 3rd 方渲染器没有像 Sketch & Toon 这样的东西？通过勾勒模型、多边形组、查找硬边或仅绘制每个多边形来创建复杂的风格化外观！

购买都附带两台计算机的许可证。一个台式电脑和一台笔记本电脑。
兼容性
Mesh To Spline 兼容 Cinema R20 及更高版本
Mesh To Spline 适用于 Mac 和 PC
Mesh To Spline 与您zui*喜欢的 3rd 方渲染器一起工作

Mesh To Spline is compatible with:
Mac and PC
Cinema4D R20 and above
Cinema 4D Prime, Broadcast, and Studio
3rd Party Plugins
3rd Party Renderers

Find the "Mesh To Spline Install PC.mp4" for a video explaining how to install on PC
Find the "Mesh To Spline Install Mac.mp4" for a video explaining how to install on Mac

Mesh To Spline Training videos: https://rocketlasso.com/MeshToSplinepluginhelp/

Manual installation of Mesh To Spline:

PC Option 1: Installing into the preference folder.
Open the version of C4D you want to install in.
Open "Edit ~ Preferences".
At the bottom of the Preferences window, click the "Open Preferences Folder" button.
A Windows Finder will open. Navidate inside the preference folder with the same version number as your current C4D.
Inside you will find a "Plugins" folder. Remove any older copies of Mesh To Spline you find.
From the .ZIP folder copy over the "Mesh To Spline" folder into "Plugins".
Restart C4D.

PC Option 2: Installing into the plugin search path.
Copy the "Mesh To Spline" folder from inside the .ZIP to some location on your harddrive.
Open the version of C4D you want to install in.
Open "Edit ~ Preferences"
In the Preferences window, navigate into the "Plugins" tab.
Remove any reference to an older version of Mesh To Spline.
Click "Add Folder".
Navidate to where you copied "Mesh To Spline" and select it. Hit "Okay".
Restart C4D.

MAC Option 1: Installing into the preference folder.
Open the version of C4D you want to install in.
Open "Edit ~ Preferences".
At the bottom of the Preferences window, click the "Open Preferences Folder" button.
A Finder window will open. Navidate inside the preference folder with the same version number as your current C4D.
Inside you will find a "Plugins" folder. Remove any older copies of Mesh To Spline you find.
If your OSX is PRE-CATALINA: from the .ZIP folder copy over the "Mesh To Spline" folder into "Plugins".
If your OSX is CATALINA OR NEWER: from the .ZIP folder copy over the "Mesh To Spline Catalina" folder into "Plugins".
Restart C4D.

MAC Option 2: Installing into the plugin search path.
If your OSX is PRE-CATALINA: Copy the "Mesh To Spline" folder from inside the .ZIP to some local location on your harddrive.
If your OSX is CATALINA OR NEWER: Copy the "Mesh To Spline Catalina" folder from inside the .ZIP to some location on your harddrive.
Open the version of C4D you want to install in.
Open "Edit ~ Preferences"
In the Preferences window, navigate into the "Plugins" tab.
Remove any reference to an older version of Mesh To Spline.
Click "Add Folder".
If your OSX is PRE-CATALINA: Navidate to where you copied "Mesh To Spline" and select it. Hit "Okay".
If your OSX is CATALINA OR NEWER: Navidate to where you copied "Mesh To Spline Catalina" and select it. Hit "Okay".
Restart C4D.

Download(C1D)

软件性质:	插件
适用版本:	C4D R20 - C4D R25
软件版本:	Version: RocketLasso Mesh To Spline v1.0
系统平台:	Win MAC
软件语言:	英文
插件来源:	https://www.c4d.com.cn/c4dsoft.html
